Products

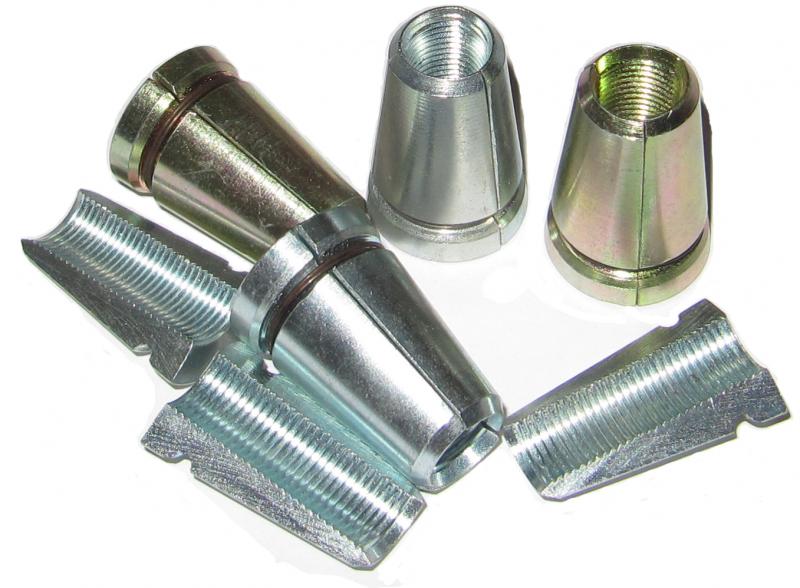

- Anchor Head Wedges
All wedges are equipped with a ring to keep the wedge attached to the tendon during elongation and/or tensioning operations.
The anchor wedges are manufactured from case hardened steel especially produced for NPT.
Accurate, automated production plus stringent testing guarantee the highest quality.
3-Piece Wedges - RSWG03The 3-Piece anchor wedges are PTI recommended for use on permanent anchors and/or anchors requiring inceremental loading. They uniformly engage the strand with less relaxation at low loads. They are manufactured from quality steels and are case hardened for durability.2-Piece Wedges - RSWG02
The 2-Piece anchor wedges are useful in higher stress applications where the anchor is loaded and simply locked off, typical to temporary applications. They are manufactured from quality steels and are case hardened for durability. Stressing Head Wedges - RSXSHW
Stressing head wedges are necessary for prestressing all classes of strand anchors. The stressing wedges are heat treated, chrome plated and designed for multiple uses.
Anchor wedges and barrels

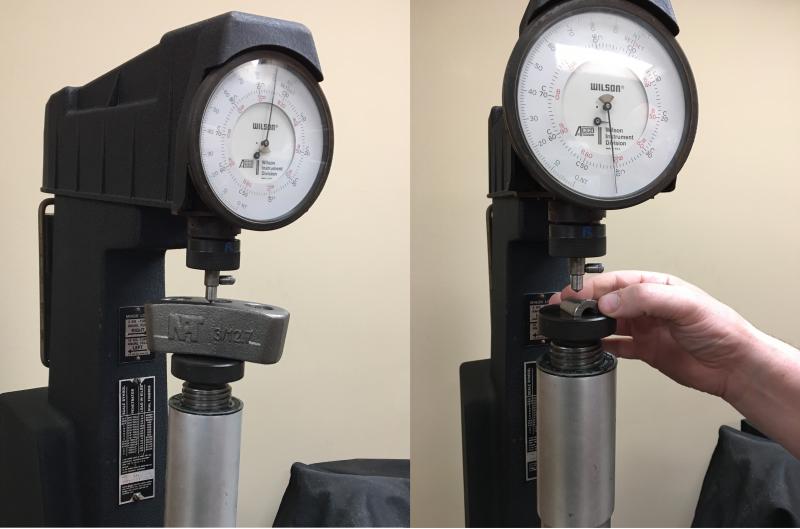

Each individual wedge segment is examined for exact tooth shape by computer cameras.
Anchor barrels are manufactured from high-tensile crack-tested basic material in a special process, and are only stamped and released for dispatch after final ultrasonic testing.
In this way, we ensure the highest industrial safety and long service life of the anchor components.

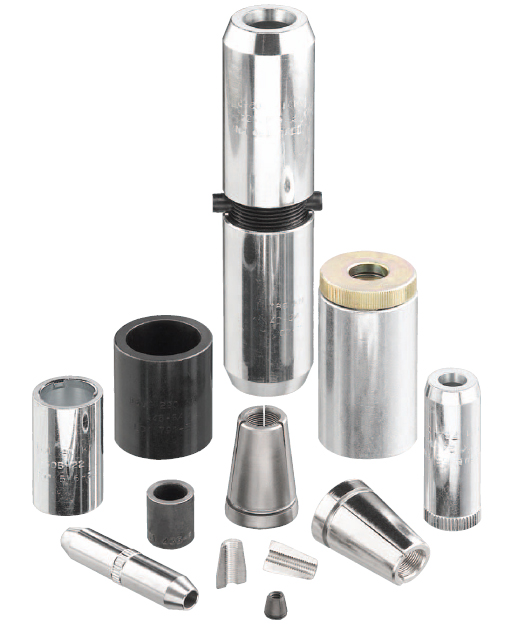

Types of anchor grips:
Type A: Open grip, the simplest and cheapest designType F: Enclosed g
rip, with screwed or bayonet cap
Type K: Coupler, with which two strands are joined thus enabling remaining strand/wire pieces to be used up

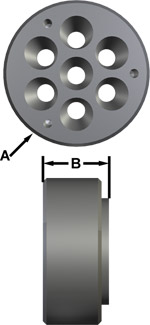

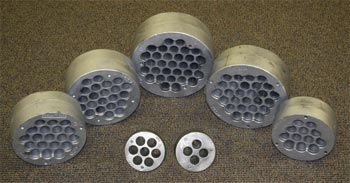

Anchor Heads (Wedge Plates)
NPT Wedge Plates are full strength permanent components. They are available galvanized
Type A
DiameterB
ThicknessPart
NumberC 4.6 5"
(127 mm)2"
(51 mm)RSAH04W C 7.6 5"
(127 mm)2"
(51 mm)RSAH07W C 12.6 7-3/8"
(187 mm)3-3/8"
(86 mm)RSAH12S C 19.6 8-1/4"
(210 mm)4"
(102 mm)RSAH19S C 22.6 9"
(229 mm)4-1/8"
(105 mm)RSAH22 C 27.6 10"
(254 mm)4-1/2"
(114 mm)RSAH27 C 31.6 10-3/4"
(273 mm)4-7/8"
(122 mm)RSAH31

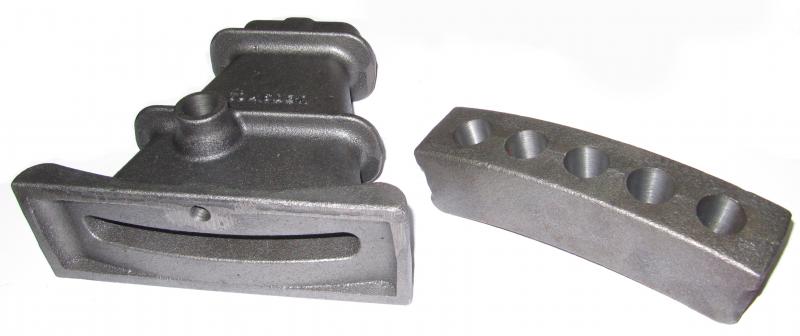

NPT Bonded Flat slab S5 Anchors
NPT bonded flat slab S5 anchors use 4 No. 15.24mm seven-wire prestressing strands or 5 No. 12.7mm seven-wire prestressing strand and the maximum characteristic tensile strength of 2000 MPa. NPT Bonded Flat slab S3 Anchors

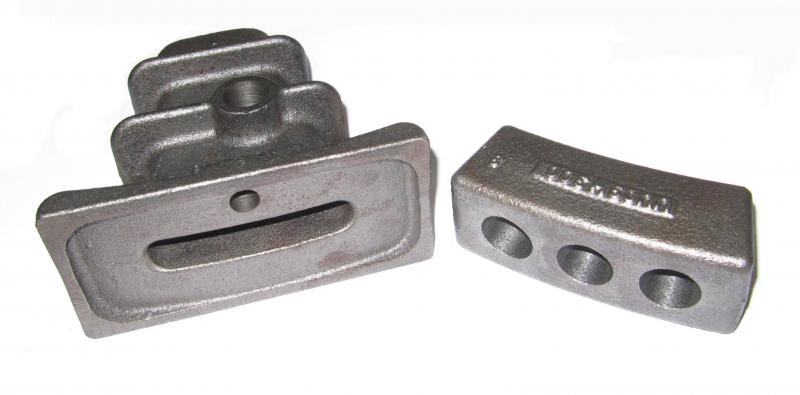

NPT bonded flat slab S3 anchors use 2 No. 15.24mm seven-wire prestressing strands or 3 No. 12.7mm seven-wire prestressing strand and the maximum characteristic tensile strength of 2000 MPa.
NPT Unbonded Monostrand Anchor castings
offers a complete range of bar anchor castings for unbonded post-tensioning applications. Bare anchor castings are available for 0.5” and 0.6” strand. Special order anchor castings can be manufactured to your specifications.Corrugated Duct
R82 Galvanized Metal Corrugated Duct - ASTM A653
NPT Galvanized Spiral Metal Duct or High Density Polyethylene Duct meets all physical and structural recommendations for post tensioning duct as laid down by the Post Tensioning Institute (of the United States). The Duct is available in 2”, 3”, and 4” diameter with couplings and reducer couplings for all sizes.
R75 Polypropylene & Polyethylene Corrugated Duct
The stable characteristics of NPT polypropylene & polyethylene duct are normally preferred where additional corrosion protection is desirable. Polypropylene Duct has been approved by the Florida DOT for internal tendons and is available in 2-3/8” diameter. Polyethylene Duct is available in 2”, 3”, and 4” diameter. Couplings and reducer couplings are available for all sizes.
Heavy Duty Plastic Grout Tube
O.D. I.D. Part No. 3/8"
(9.5 mm)1/4"
(6.4 mm)T3P03002 1/2"
(12.7 mm)3/8"
(9.5 mm)T3P04003 5/8"
(15.9 mm)1/2"
(12.7 mm)T3P05004 3/4"
(19.1 mm)5/8"
(15.9 mm)T3906005 1" Nom.
(25.4 mm)3/4" Nom
(19.1 mm)T3P06
Furnished in product lengths for the anchors or in rolls.
Pocket Cap
Universal Corrosion Protection Cap for all Post Tension Anchors. The PocketCap attaches to the "cut strand end", not the anchor
Product Details:
Test reports meeting the Post Tension Institute's requirements
Patented & Produced in USANPT Grout Bonded Strand Anchors

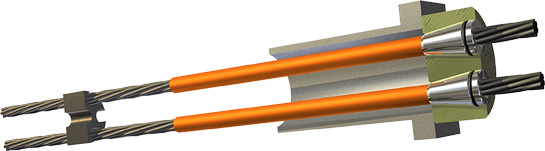

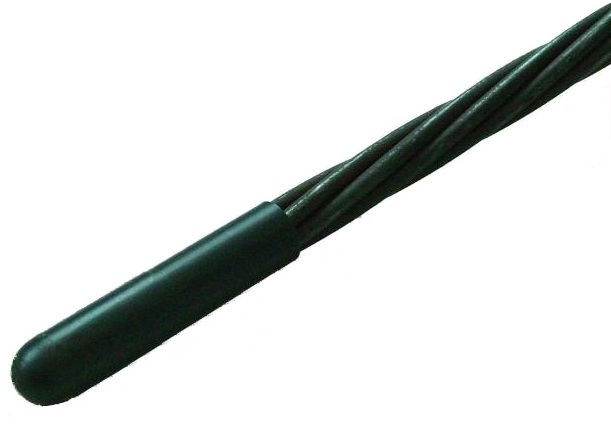

NPT Strand Anchors are produced from 0.6” diameter, 7 wire strand (fpu = 270 ksi, 1862 N/mm2) meeting ASTM A-416 and are manufactured in accordance with the Post-Tensioning Institute’s Recommendations for Prestressed Rock and Soil Anchors.Strand Head
Used to improve installation of PC Strand into Corrugated Ducts

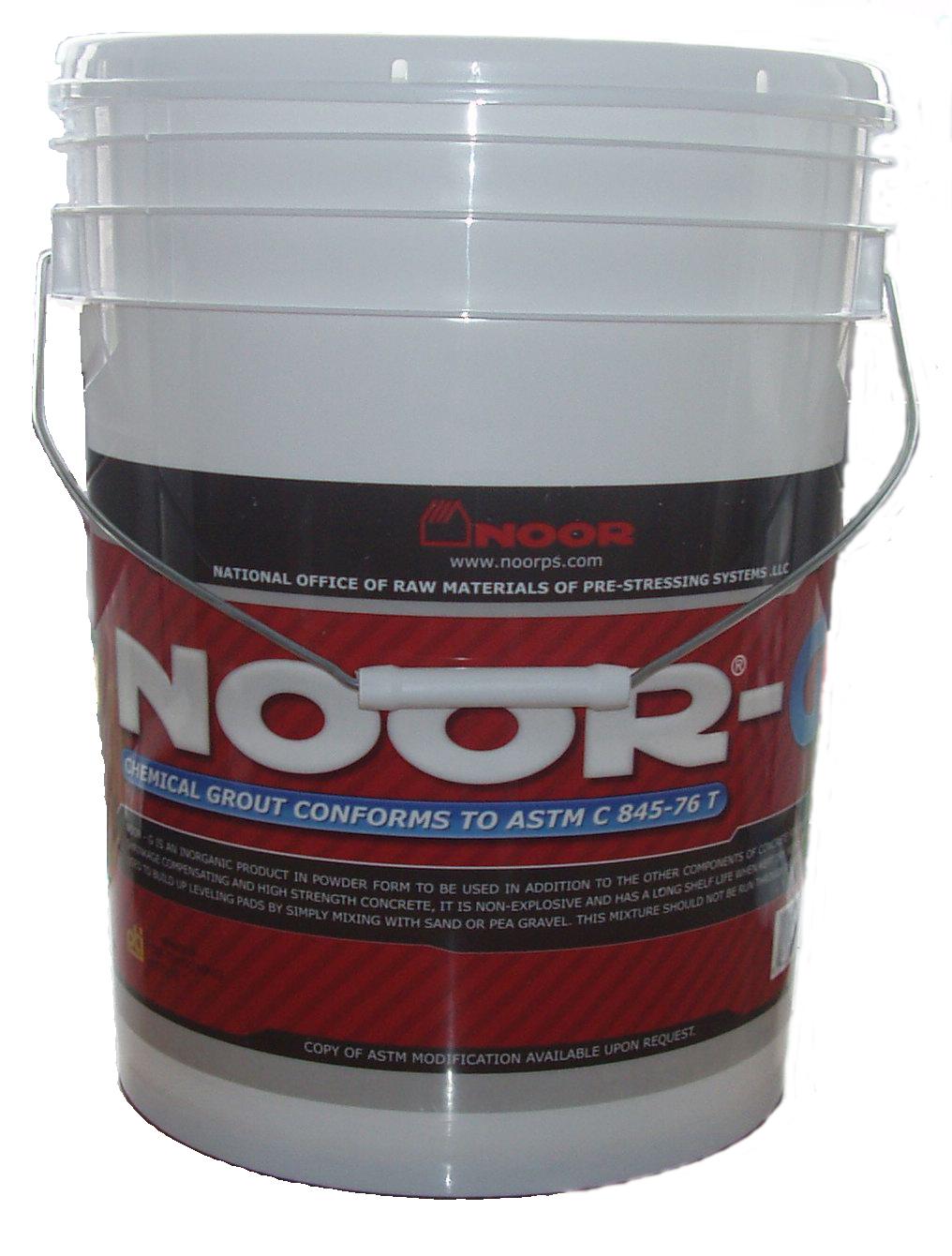

NOOR-G Grouting Chemical
NOOR-G is an inorganic product in powder form to be used in addition to the other components of concrete for producing shrinkage compensating and high strength concrete. It is a special clinker, burnt at high temperature, rich in free lime and whose minor compounds are calcium silicates, aluminates, Ferro-aluminates and suphates. The use of super plasticizers is particularly recommended when using NOOR - G as they significantly reduce the water content and thus the potential shrinkage of the concrete to be compensated. It can be used in post tension cable duct grouting and crack repairs and more.
Compressive Strength (ASTM C-942)* (70° F Dry Environment) 0.4 w/c Ratio
3 days 3,000 psi (20.0 MPa)
7 days 5,000 psi (33.3 MPa)
28 days 7,000 psi (46.7 MPa)NOOR-G produced by our sister company :
NOOR-National Office of Raw Materials of Pre-stressing Systems .LLC
Click here to download Technical Data Sheet (TDS) for NOOR-G Click here to download Material Safty Data Sheet (MSDS) for NOOR-G
